DIY Twin Scan 4 ABS Tool Rental

The price listed includes the Rental Fee ($179.95 CAD) and the Deposit ($799.00 CAD).

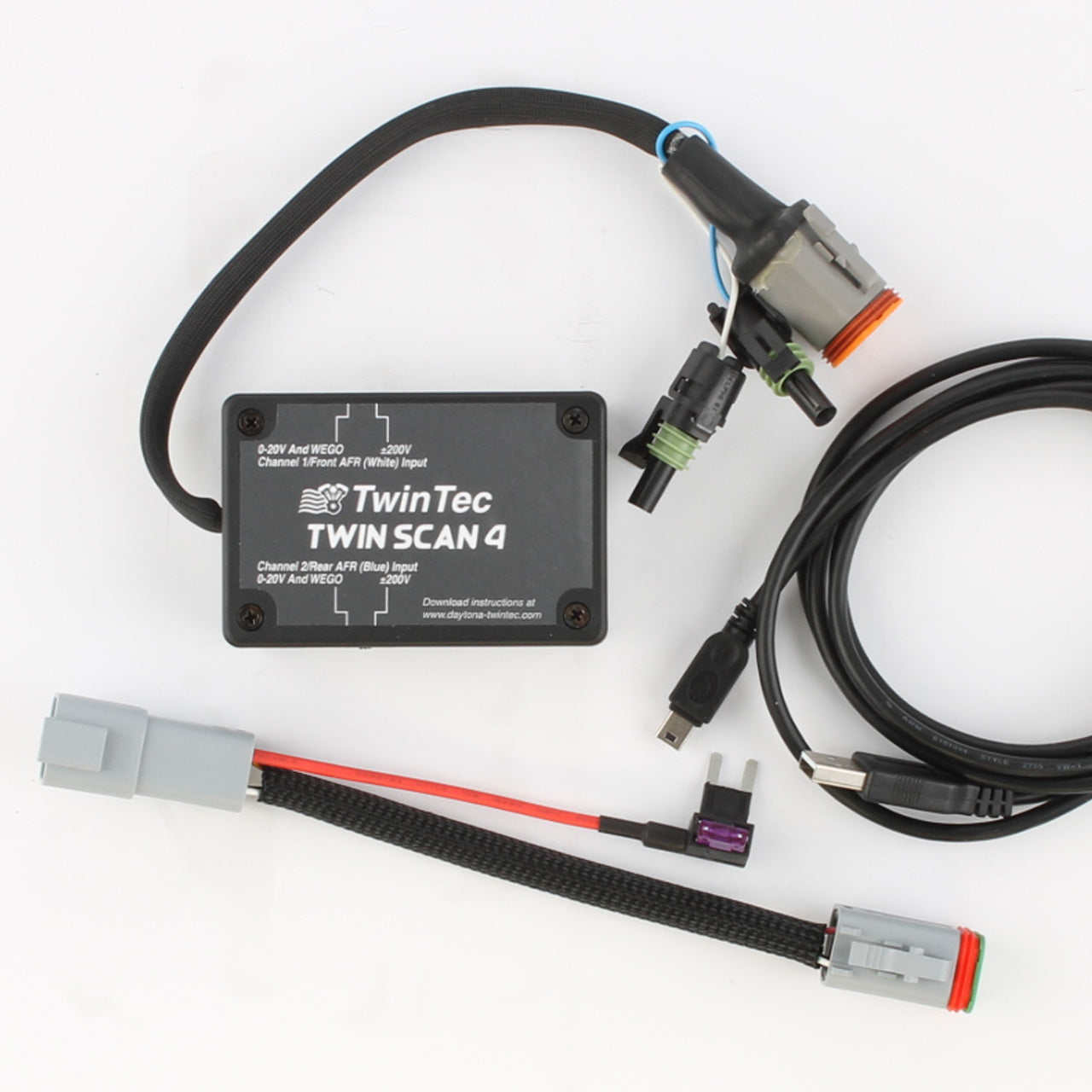

15500 – Twin Scan 4 ABS – HD Scan Tool / ABS Brake Bleed (2011-2020) Rental

Features:

• Diagnostic Trouble Codes

• ABS Brake Bleeding Functions

• Real Time Engine Data

• Stand Alone – Data Logging

• AFR Data Analysis

• Scopemeter Feature

• Key Fobs and Security Settings

• ECM Enable and Disable Settings (cruise, ex valve, etc.)

• ECM Idle Speed Setting

• BCM Enable and Disable Settings (radio, abs, fog lights, trike kit, etc.)

• Speedometer Calibration and Pairing (replacing speedo, etc.)


Software and insturctions are downloadable from Daytona website

Compatible with 2011-2020 Softail^®, 2012-2020 Dyna^® and 2014-2020 Sportster^® and 2014-2020 Touring models with CAN data bus

         NOTE: All models with the CAN data bus utilize the  6-pin Deutsch® style diagnostics connector

     · Twin Scan 4 ABS – Utilizes a Windows PC for display – Compatible with: Windows XP/7/8/10/11.

     · Reads and clears diagnostic trouble codes from engine control module (ECM), BCM (body control module), speedometer, tach, and anti-skid braking system (ABS)

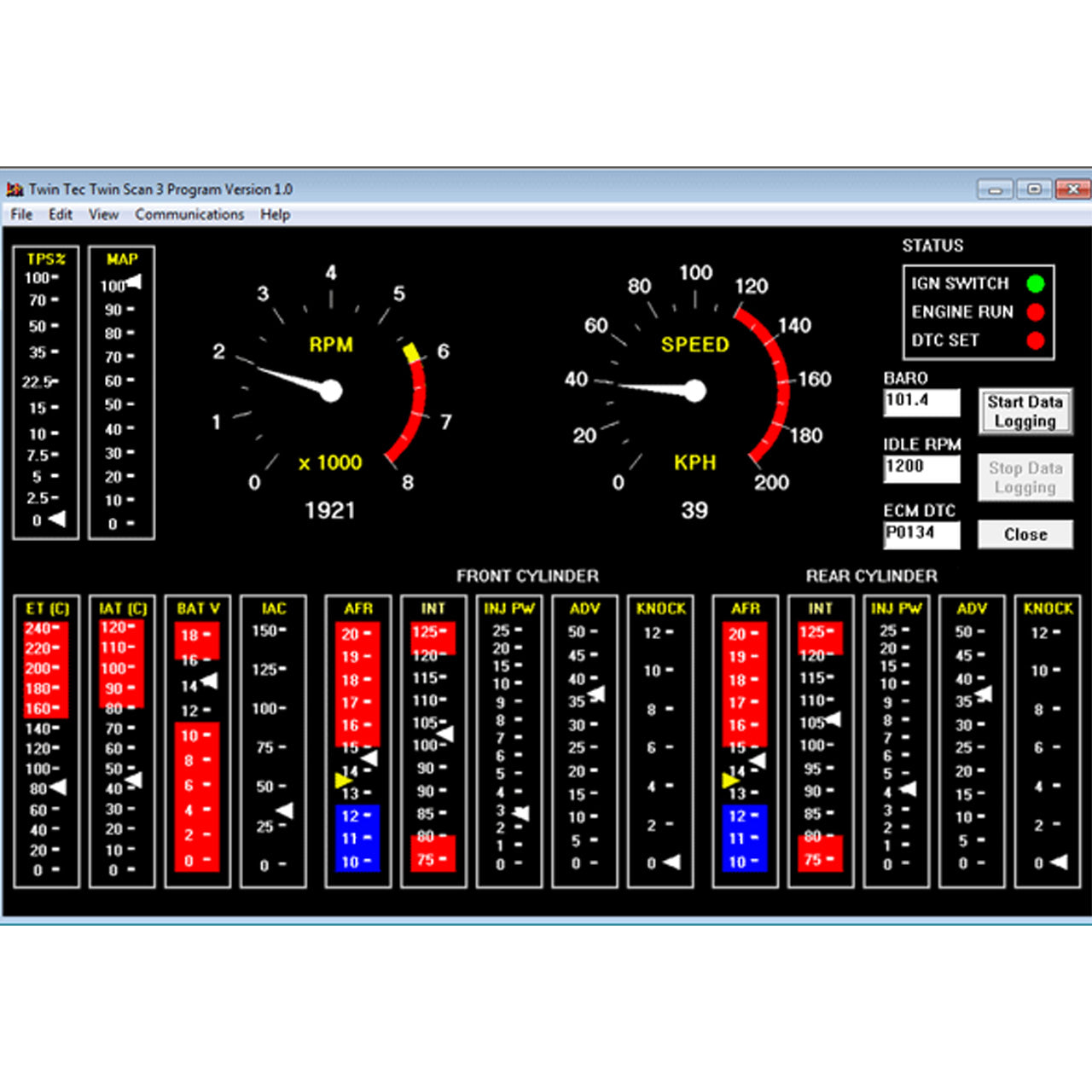

     · Real time display of engine data on instrument panel type display

     · Anti-skid brake system (ABS) brake bleeding functions.  Individual front and rear ABS brake bleeding functions are available. If you are only servicing the front or rear brake section, you do not need to bleed the opposite section. ABS brake bleeding should only be performed by a trained and experienced mechanic.

     · Built-in data logging. Stores up to one hour of data. Automatically triggers when a trouble code is set. Shows data before and after code is set

     · Includes two analog inputs with 0-20V or ±200V range. Dual channel scopemeter capability for waveform display. The analog inputs can also be used for air/fuel ratio (AFR).

     · Compact size: 3.2″L x 2.2″W x 1.0″H

     · Reprogram and read key fobs, reprogram PIN and disable key fobs to eliminate them in the security system

     · Recalibrate the speedometer, when you install a new speedometer – this feature will allow you to eliminate the VinErr display (Note: Supported up through 2016)

     · The ECM (engine control module) settings feature allows programming of the ACR (automatic compression release), EITMS (engine idle temp management system), cruise control enable/disable and active exhaust setting. Also the ability to clear fuel trims (Note: Supported up through 2016)

     • Capable of reprogramming the idle speed for testing. Simple interface allows fast reading and setting of the idle speed value (Note: Supported up through 2016)

Note: Not all features are available for all models. Most features are available for almost all models through 2016. For example, the 2017 and newer models do not have the ability to adjust idle rpm and speedometer calibration.

You are paying to rent this tool for 7 days

Your rental period starts once your tool is marked as "DELIVERED" and ends when the included return label is scanned as "PICKED UP".

Your deposit (less return shipping cost) will be refunded once the tool is returned and inspected, and deemed to be in similar condition to when it was shipped, less normal wear and tear.

*tool must be returned 7 days after receipt. If further time is needed, you agree that we will deduct 5% per day from your deposit. After 21 days, if the tool has not been returned, no refund will be given on the deposit amount.

*tool must be returned in original box and packaging, with all instructions (if included) and all parts, bits, cases, connectors, etc. intact. If a tool is broken or returned in significantly worse condition than it was sent to you in, such as but not limited to missing parts, components, packaging, or other issues, you agree that we may deduct the cost to repair, refurbish, or replace these parts as well as a service fee which may be up to the total cost of the deposit.

*return shipping label is provided at a discounted price for your convenience, the cost is deducted from deposit amount.
